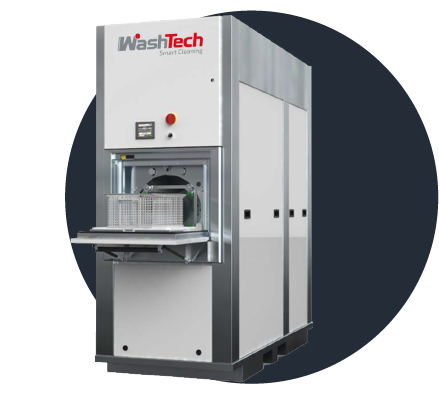

MecanoJet Compact – Spray Degreasing Machine

Compact cleaning machine with drum for small loads

  • Footprint < 2.5 m², 6 to 8 loads per hour
  • Drum oscillation or rotation
  • Modular full cycle: washing, rinsing, drying
  • Closed-loop operation
  • Available with swing or vertical door

Descargar Brochure

Technical specification
Usable dimensions
Internal basket dimensions
480x280mm
External basket dimensions
530x320x200mm
Maximum load
30kg
External dimensions
Width
950mm
Depth
2210mm
Height
2280mm

Bulk degreasing of mechanical parts,
organized or with complex geometries

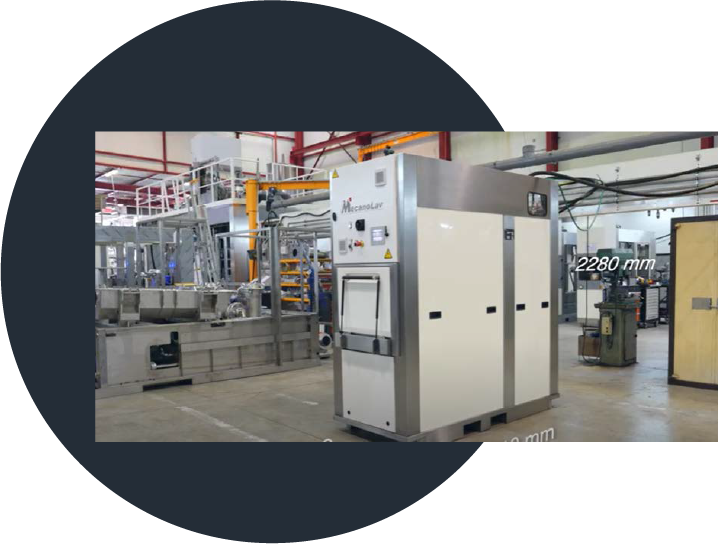

Footprint less than 2.5 m²

The monoblock design of the MecanoJET Compact makes it a cleaning machine especially suitable for machining workshops with limited space, particularly in the bar-turning sector.

  • 950 mm width
  • Easy integration into a production cell

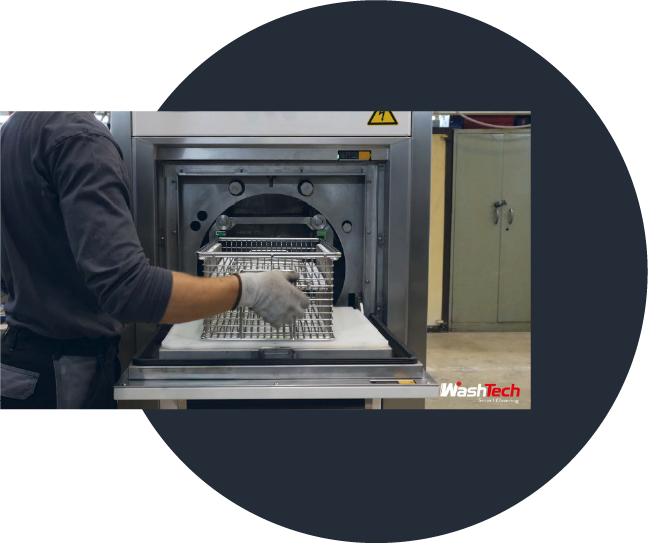

6 to 8 loads per hour

The MecanoJET Compact is dedicated to processing small loads, ensuring a treatment capacity of six to eight loads per hour, achieving high levels of cleanliness and great flexibility.

Contact us for an evaluation
of your cleaning processes

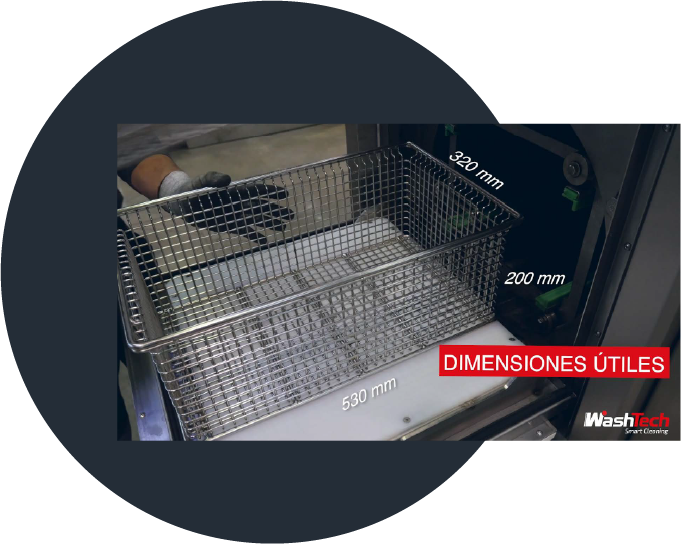

Treatment of small batches

The MecanoJET Compact can accommodate baskets or pallets with usable dimensions of 530 x 320 x 200 mm.

Its bigger sibling, the MecanoJET, allows for processing larger loads up to a custom-made drum.

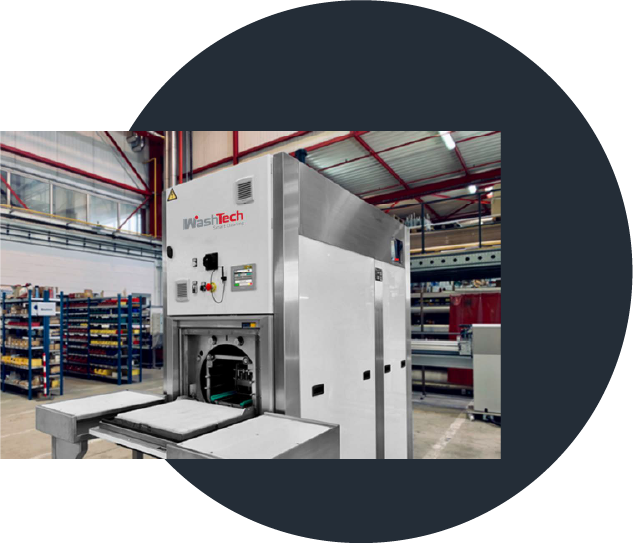

360° Rotation and Oscillation

For each cycle recipe, the MecanoJET Compact offers the option to select between full drum rotation or oscillation.

  • Full rotation: closed basket / non-sensitive parts or parts fixed in position
  • Oscillation at a set angle: part-holder pallets / sensitive parts

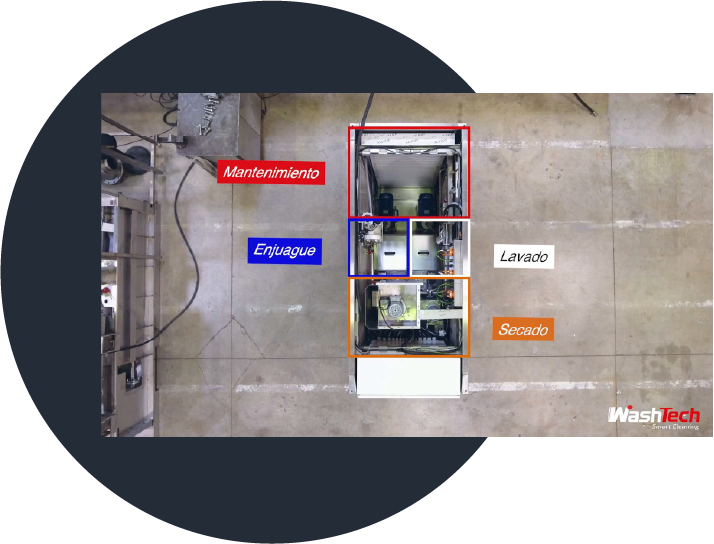

Full and Modular Cycle

To provide excellent degreasing performance, the MecanoJET Compact features two separate tanks.

Cleaning recipes are modular according to the type of treatment required and the parts to be cleaned.

  • Accessible filters
  • Drain pump with integrated pipe
  • Water inlet with maintenance gun
  • Automatic chemical dosing
  • Automatic cascade filling
  • Coalescence degreaser

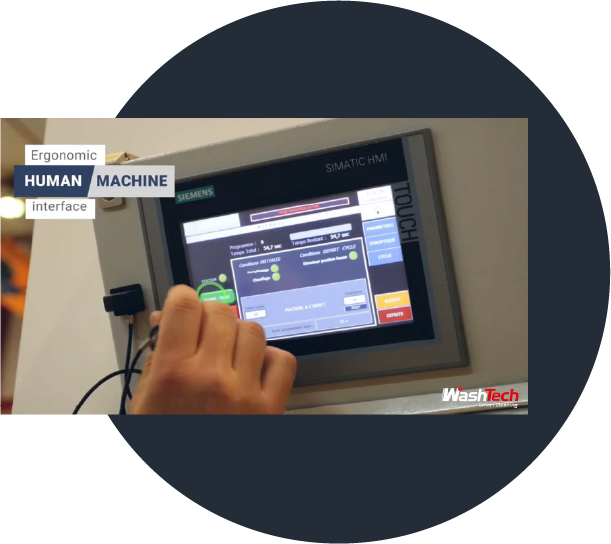

Human-Machine Interface Made Simple

The MecanoJET Compact is equipped with a PLC with a touchscreen that allows operators to use the machine easily and intuitively.

  • Cycle recipe configuration
  • Process parameter visualization
  • Parameter modification
  • Alert and fault management
  • Traceability with washing report generation

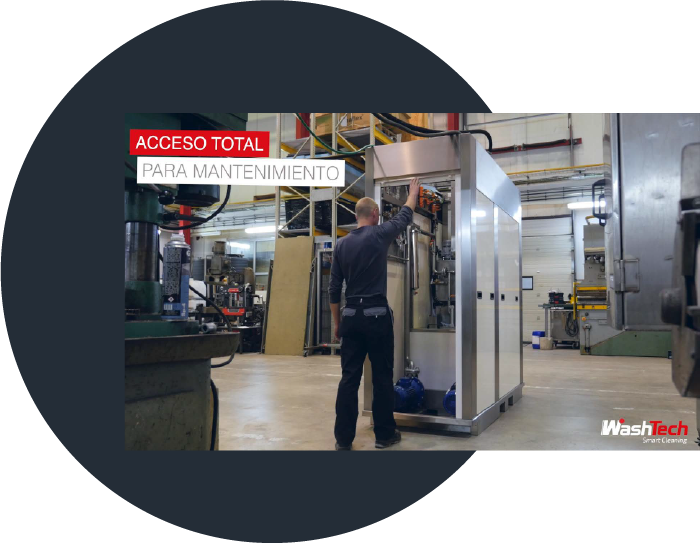

Optimal Maintainability

Designed for easy maintenance, the MecanoJET Compact features wide rear access via a roll-up shutter.

  • Accessible filters
  • Drain pump with integrated pipe
  • Water inlet with maintenance gun
  • Automatic chemical dosing
  • Automatic cascade filling
  • Coalescence degreaser

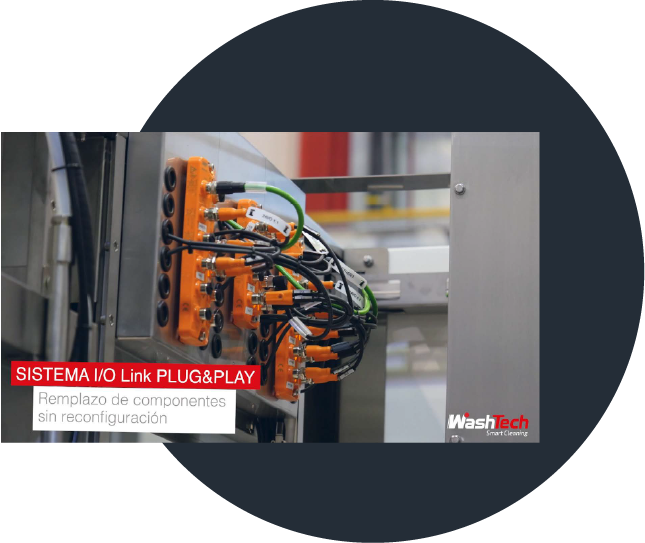

Native I/O LINK – Plug & Play

The machine comes standard with I/O Link masters and modules that allow detection of operational anomalies.

  • Immediate detection of cable or signal break
  • No loss of measured values
  • Plug & Play sensor replacement: no reconfiguration needed

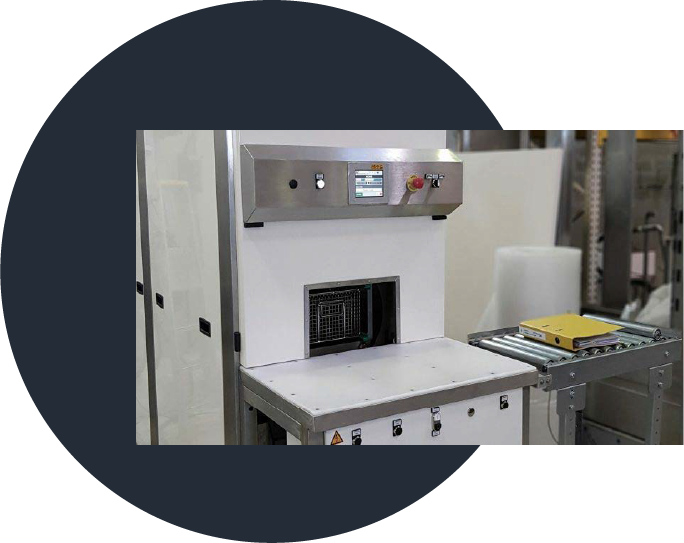

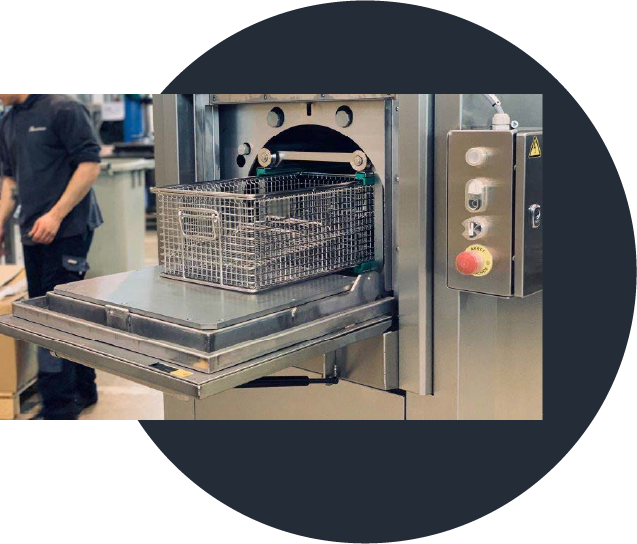

Swing or Vertical Door

Offered as standard with a manually operated swing door, the MecanoJET Compact can also be equipped with a vertical door that opens automatically at the end of the cycle.

  • Swing door acting as a loading station
  • Vertical door with fixed workstation

Adaptation to Your Needs

The DNA of WashTech lies in adapting our machines to the cleaning challenges of our clients. Although it is a standardized solution, the MecanoJET Compact is no exception.

  • Fully reinforced stainless steel construction

APLICACIONES COMUNES


  • Cleaning of cutting tools
  • Cleaning of bar-turning parts
  • Washing in a production cell
  • Bulk washing of small parts
  • Organized washing of small parts
  • Washing of complex-shaped parts on part-holder pallets
