MecanoJet – Industrial basket parts washer with spray cleaning

Washing, rinsing and drying of medium and large loads, 4 to 6 loads per hour

  • Productive > 4 to 6 loads per hour, 670 x 480 x 300 mm basket up to 50 kg
  • Rotation or oscillation > 360° rotation or set angle depending on the part
  • Full cycle > washing, rinsing and hot-air drying, with two tanks
  • Automation-ready > automatic loader, lift table, conveyors or pass-through flow
  • Custom-made > drum and part-holder pallets designed by our engineering office
  • Designed and built by WashTech in Querétaro, Mexico

Request a quote

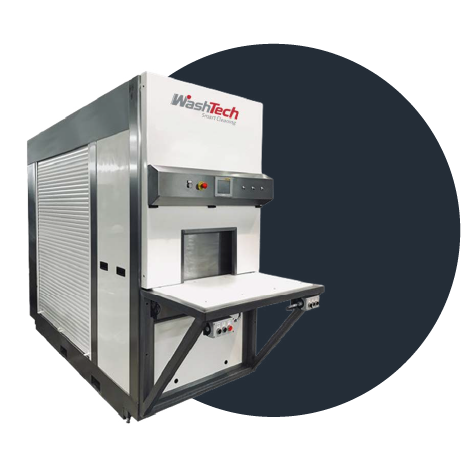

Spray Cleaning System Designed for Large Parts with Custom Drum

Download Brochure

Technical specification
Usable dimensions
Internal basket dimensions
610x430x280mm or custom
External basket dimensions
670x480x300mm or custom
Maximum load
50kg or custom
External dimensions
Width
1140mm
Depth
3375mm
Height
2430mm
Fondo lineal

Degreasing of medium and large parts, in bulk,
organized or with complex geometries

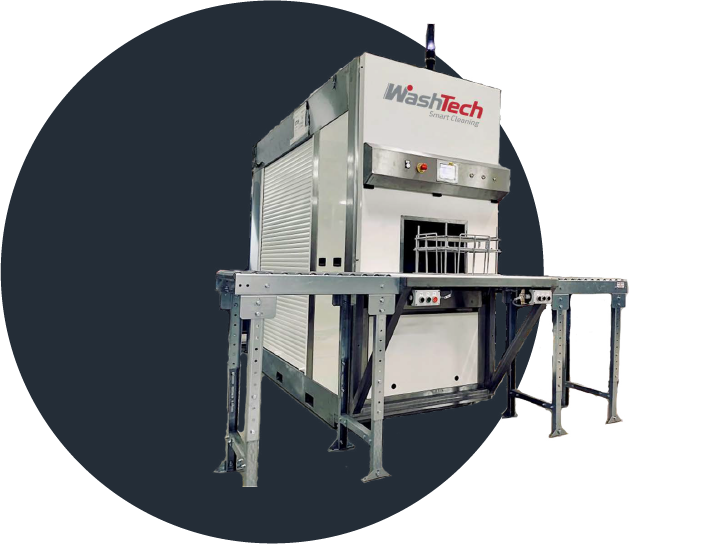

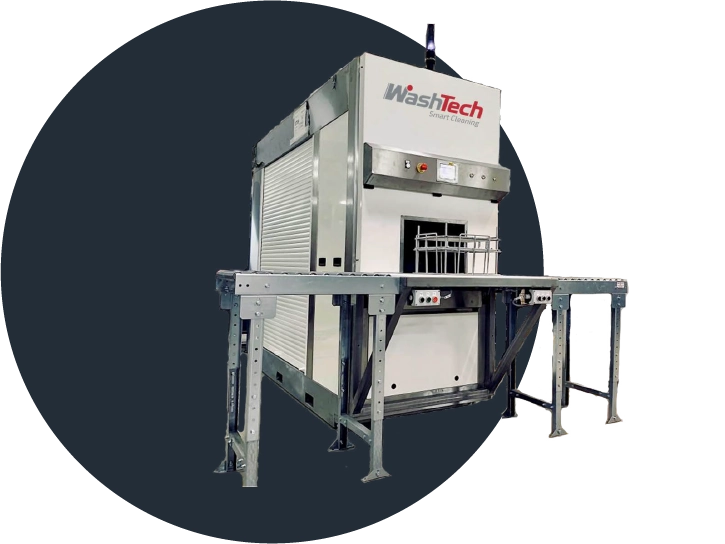

MecanoJet industrial washing machine with a conveyor belt.

4 to 6 loads per hour

The MecanoJet washes, rinses and dries medium and large loads, with a capacity of four to six loads per hour.

  • High, repeatable cleanliness from one load to the next
  • Recipes tailored to each part family

Large batches

The MecanoJet processes 670 x 480 x 300 mm baskets up to 50 kg, and can take a custom drum for larger loads.

Its smaller sibling, the MecanoJet Compact, accommodates baskets or pallets with usable dimensions of 530 x 320 x 200 mm.

MecanoJet Compact

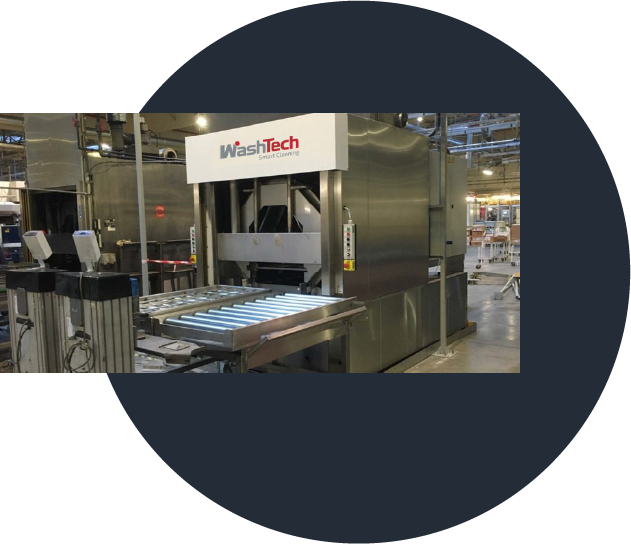

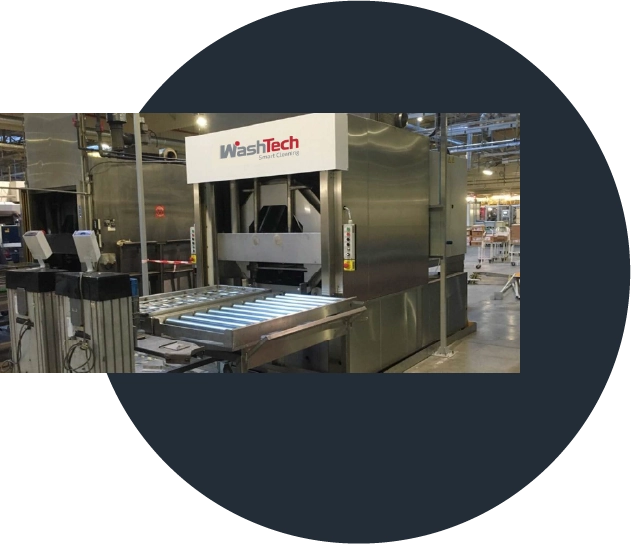

Robust Conveyor for Cleaning Line of Large Industrial Loads

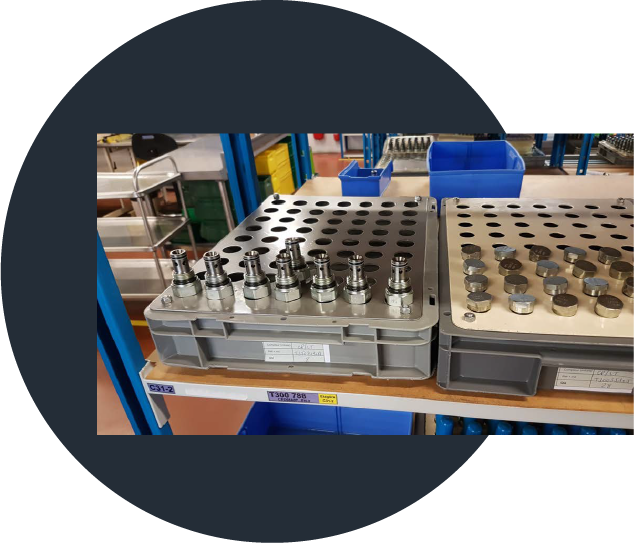

Custom Workpiece Holder for Efficient Washing of Large Volume Components

360° Rotation and Oscillation

For each cycle recipe, the MecanoJET offers the option to select between full drum rotation or oscillation.

  • Full rotation > closed basket / non-sensitive parts or parts fixed in position
  • Oscillation at a set angle > part-holder pallets / sensitive parts

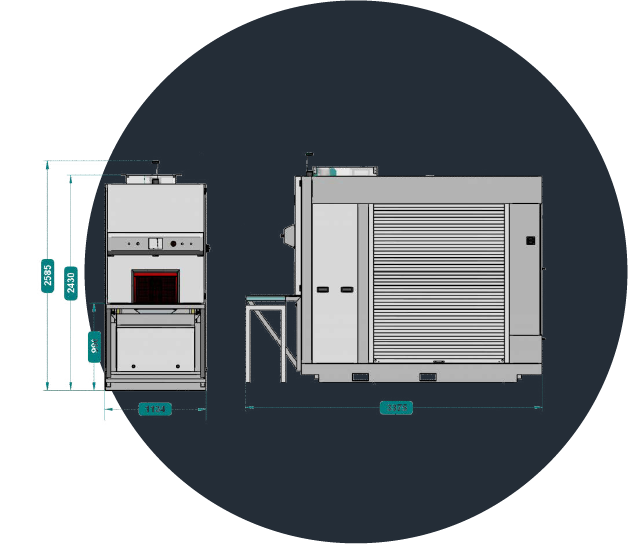

Monoblock Design

All equipment and functions are integrated within the maintenance compartment of the MecanoJet. Its reinforced chassis, with forklift pockets, allows easy installation in the production workshop.

  • 1140 mm wide
  • Easy integration into the production cell
  • Optimal accessibility through two side roll-up shutters

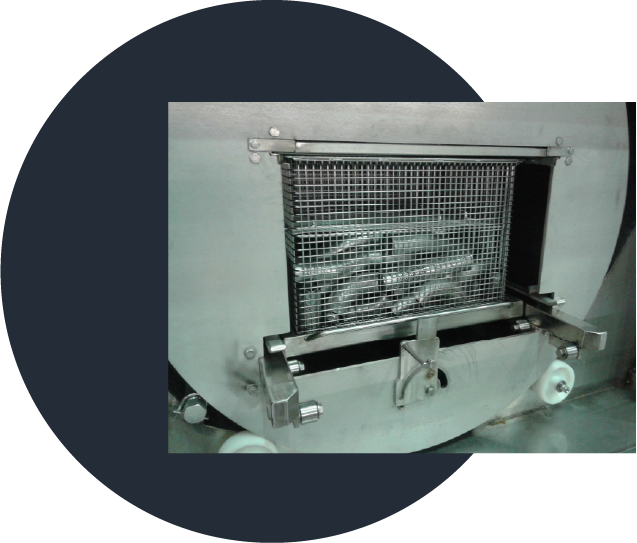

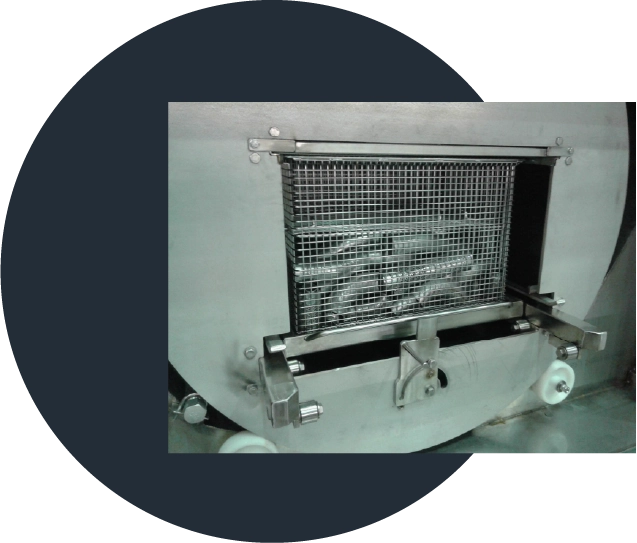

Spray Cleaning Machine with Capacity for Large Production Batches
Spray Cleaning Machine with Capacity for Large Production Batches

Full and Modular Cycle

To provide excellent degreasing performance, the MecanoJET features two separate tanks.

Cleaning recipes are modular according to the type of treatment required and the parts to be cleaned.

  • Spray washing stage
  • Spray rinsing stage
  • Blowing and/or hot air drying stage

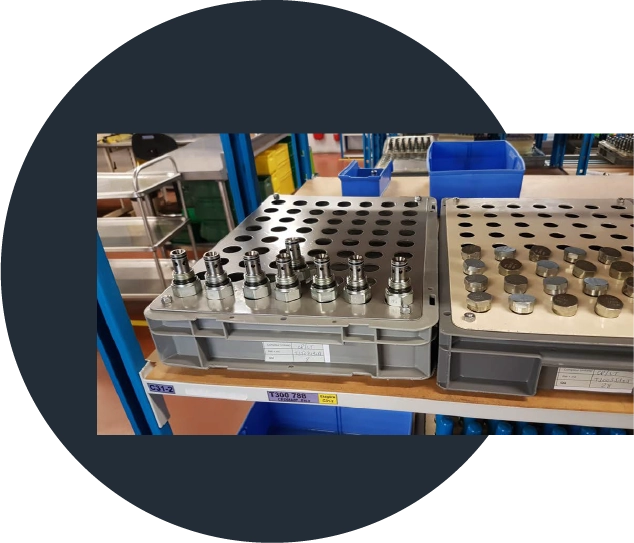

Custom Pallets

In addition to classic mesh baskets, the MecanoJet can process parts arranged on dedicated part-holder pallets.

WashTech handles the CAD design in its in-house engineering office, as well as the manufacturing of these fixtures.

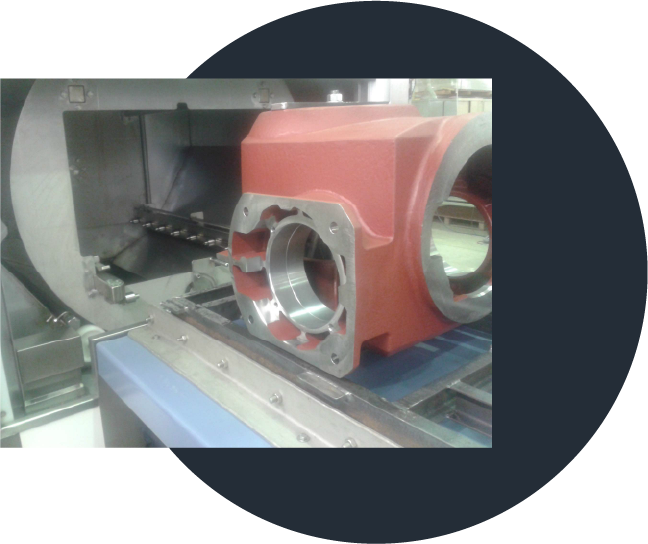

Technical Cleaning Application for Sectors Handling Heavy Components

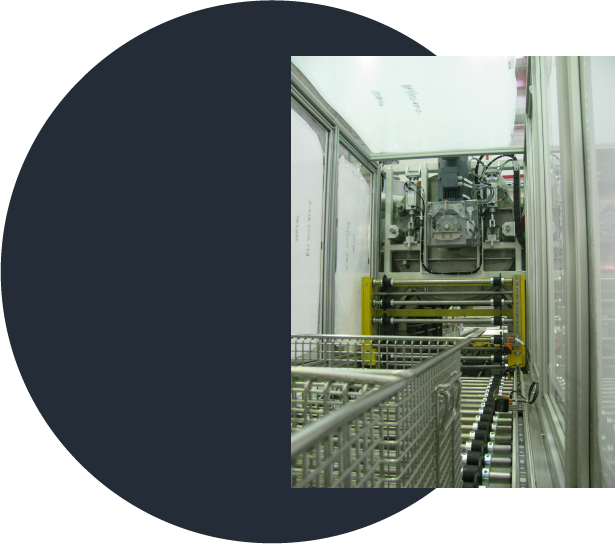

Implementation of Cleaning Systems for Large Parts in Production Lines

Automatic Loading

To simplify loading and unloading, complementary equipment is easily integrated with the degreasing machine.

  • Automatic loader linked to the machine PLC
  • Automatic lifting and insertion via lift table
  • Infeed/outfeed conveyors
  • Manual 3-position table to prepare loads in hidden time

Human-Machine Interface Made Simple

The MecanoJET is equipped with a PLC with a touchscreen that allows operators to use the machine easily and intuitively.

  • Cycle recipe configuration
  • Process parameter visualization
  • Parameter modifications
  • Alert and fault management
  • Traceability with washing report generation

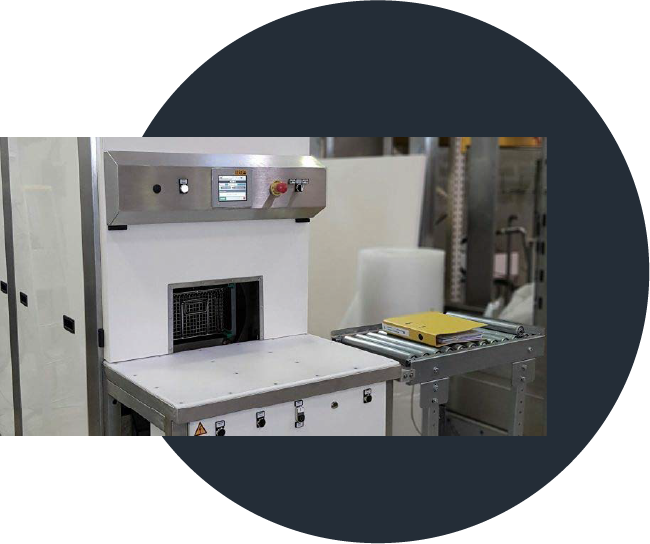

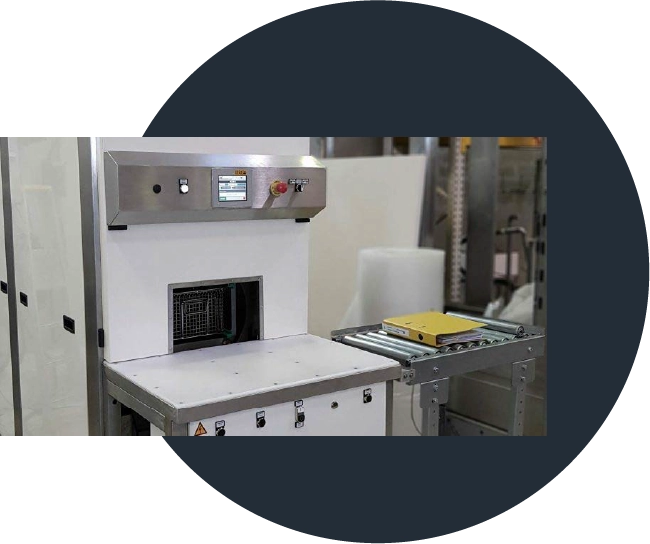

Industrial Washer for Large Parts with Flexible and Adaptable Cycles

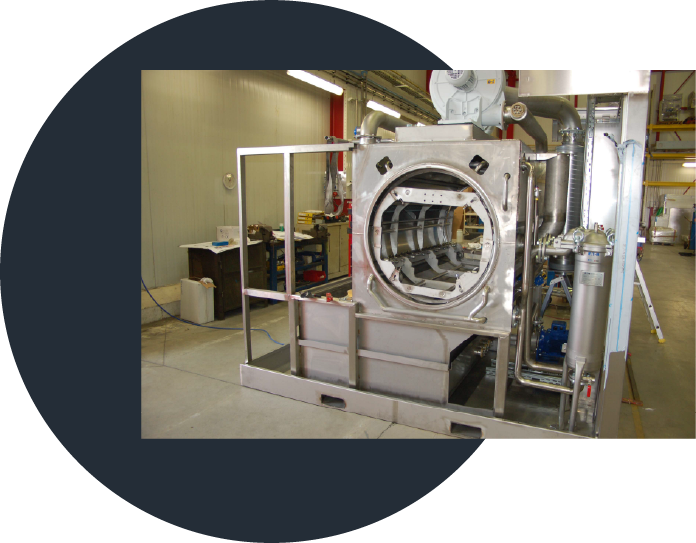

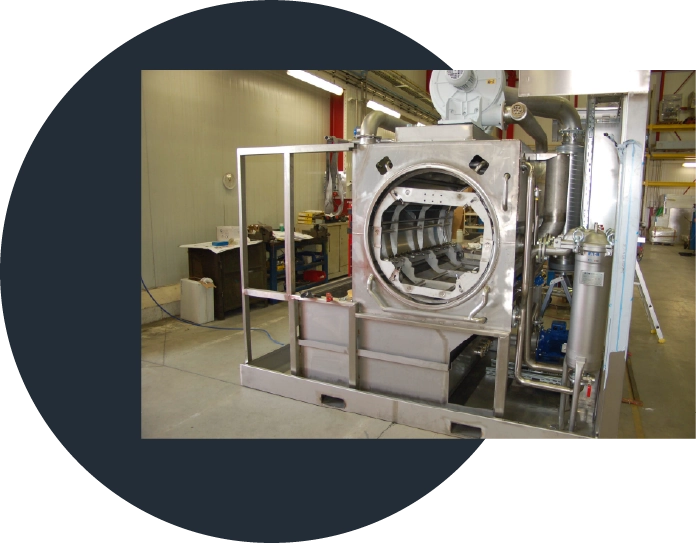

Tunnel Type Entry and Exit for Continuous Cleaning of Large Components

Pass-through Flow

The MecanoJet is available in a pass-through version (inlet area / outlet area). Following the principle of a tunnel washer, the rotation or oscillation ensures excellent overall performance while making drying easier.

COMMON APPLICATIONS


  • Bulk degreasing of parts
  • Washing machined parts between operations
  • Cleaning of bar-turned parts
  • Cleaning of cutting tools
  • Washing in a production cell
  • Washing parts arranged on part-holder pallets
  • Washing parts with complex geometries
  • Washing before assembly or dimensional inspection

Frequently asked questions

What parts can be cleaned in the MecanoJet?

Medium and large parts in bulk baskets, parts arranged on part-holder pallets and parts with complex geometries: machined parts, bar-turned parts or cutting tools. The standard basket is 670 x 480 x 300 mm and takes up to 50 kg; for larger loads we build a custom drum.

How many loads per hour?

4 to 6 loads per hour, depending on the recipe: washing, rinsing and hot-air drying, with two separate tanks.

Drum rotation or oscillation?

Each recipe lets you choose. Full 360° rotation suits closed baskets and non-sensitive parts; oscillation over a set angle suits part-holder pallets and sensitive parts. The movement helps drain cavities and makes drying easier.

MecanoJet or MecanoJet Compact?

The MecanoJet Compact handles 530 x 320 x 200 mm baskets up to 30 kg on less than 2.5 m² of floor space. The MecanoJet handles 670 x 480 x 300 mm baskets up to 50 kg, or a custom drum.

Can loading be automated?

Yes: automatic loader linked to the machine PLC, lift table, infeed and outfeed conveyors, or a manual 3-position table to prepare the next load in hidden time. A pass-through version with separate inlet and outlet is also available.

Can I run trials with my own parts?

Yes. We run washing trials with your parts in Mexico or France, with cleanliness analysis if your specification requires it.
