Spray Cabinet Parts Washer for Robot Cells

Optimize Your TAKT Time

The MecanoFAST washes and dries one part, or several parts per cycle, from 30 seconds depending on part type and complexity. It is a high-volume parts washer that keeps pace with your line instead of stopping it.

Easy Integration
Between Production Operations

Designed to integrate easily into the production flow, the MecanoFAST allows a smooth connection between upstream and downstream manufacturing processes.

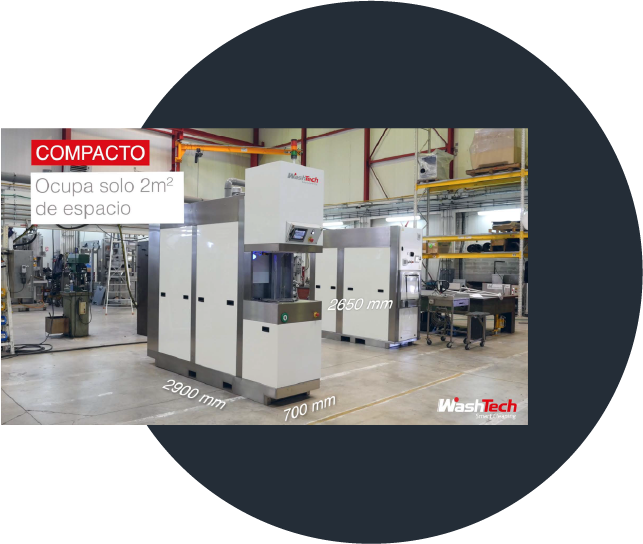

Less than 2 m² footprint
700 mm width

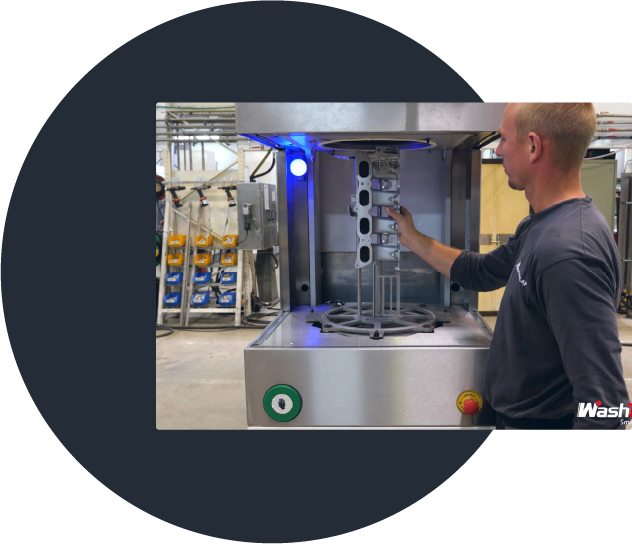

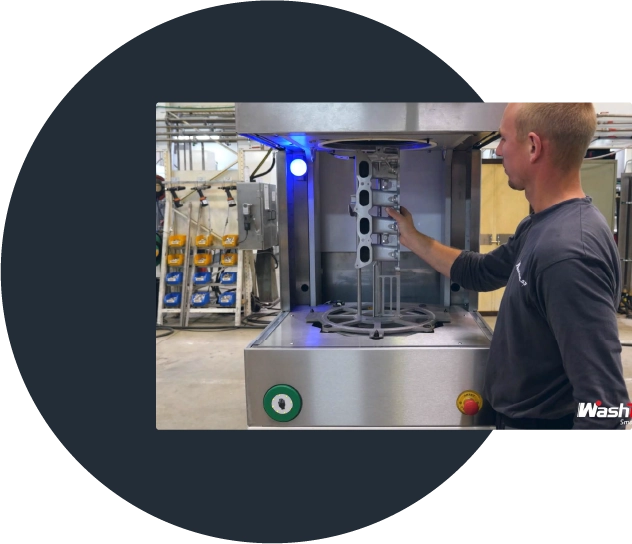

Fast Washer with Drying and Precision Cleaning

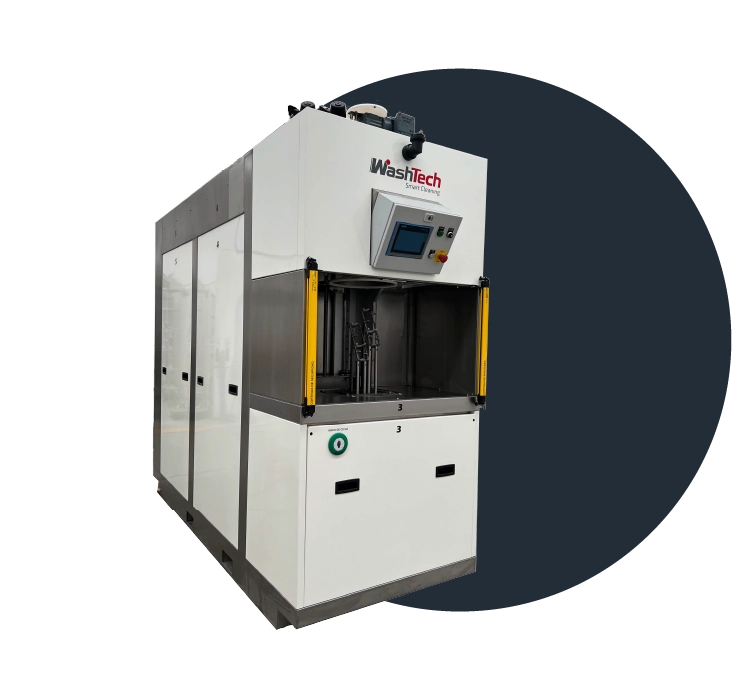

Cleaning in Continuous Flow

The batch cleaning concept creates significant interruptions in the production flow, slowing down production and generating inventory buildup. The MecanoFAST process takes a different approach, using the one-piece flow concept with a short cycle time.

Continuous flow: no batches
Loading and unloading in the same position
No production accumulation
Fast detection of machine faults

Targeted Cleaning and Drying

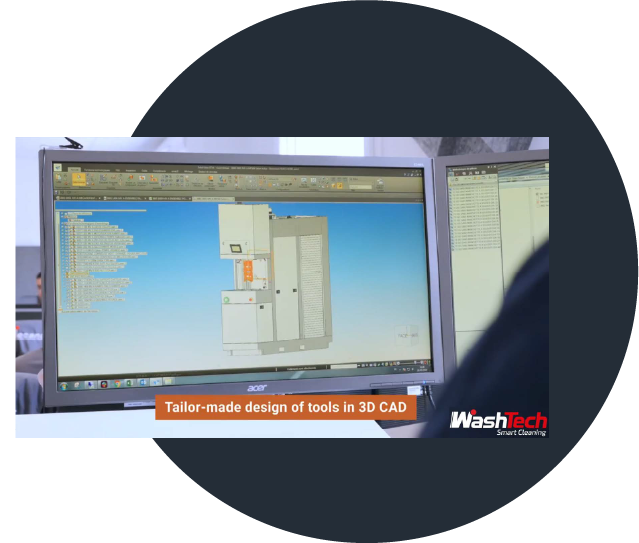

The part support and cleaning/drying tools are designed in 3D and manufactured according to the part drawings and critical areas.

Cleaning and drying of critical areas, blind holes, threads, etc.
Perfect drying
Part exit temperature below 35°C

Integrated Design of Industrial Washer Manufacturer

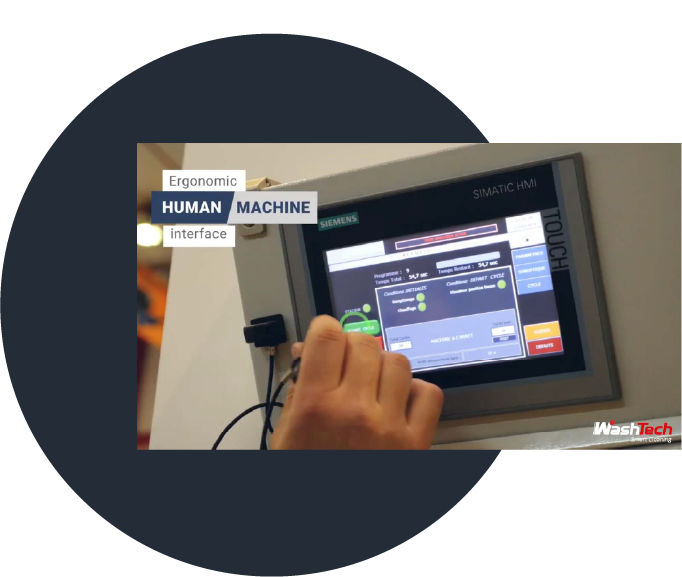

Ergonomic HMI for Operators and Technicians Washer

Process Reliability and Repeatability

The MecanoFAST integrates high-quality components from premium brands.

Process data visualization and monitoring
Automatic detergent addition
Programmable partial drainage

Improve Your Competitiveness by Reducing Operating Costs by 50%

The MecanoFAST uses about half the energy and a quarter of the water of a traditional tunnel or carousel washer, on less than 2 m² of floor space.

Built for Robot Cells

More than half of the MecanoFAST machines installed worldwide are loaded and unloaded by robots. The machine is designed for it:

Profinet interface with PN/PN coupler to communicate with the robot and the line

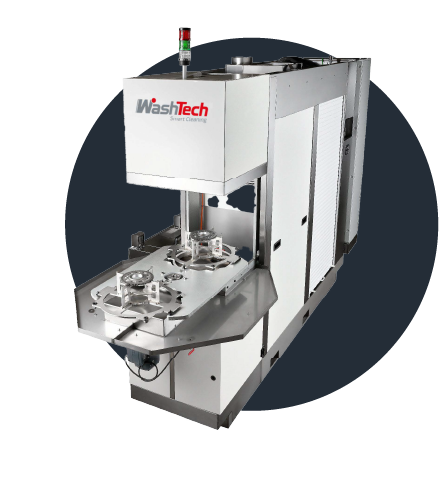

2- to 5-position rotary table: loading and unloading available up to 95% of the time
Separate “dirty” and “clean” zones
Manual mode with light curtains when production requires it

Modular and Easily Upgradable

Quick change > tool replacement in less than 5 minutes

Reconfiguration > only the tools need to be changed to process a different part number

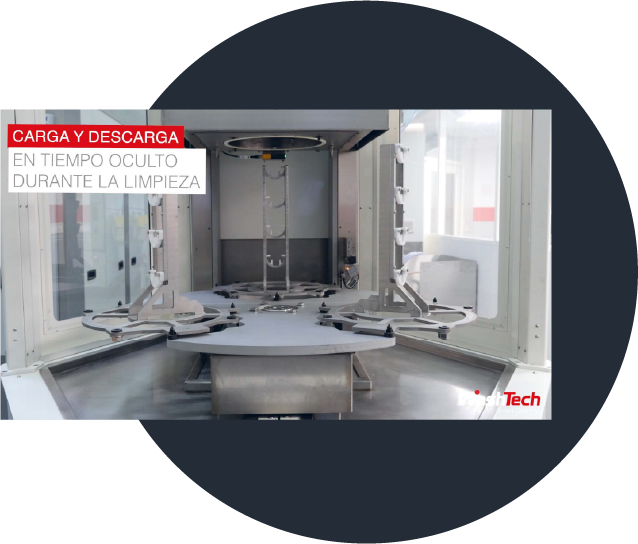

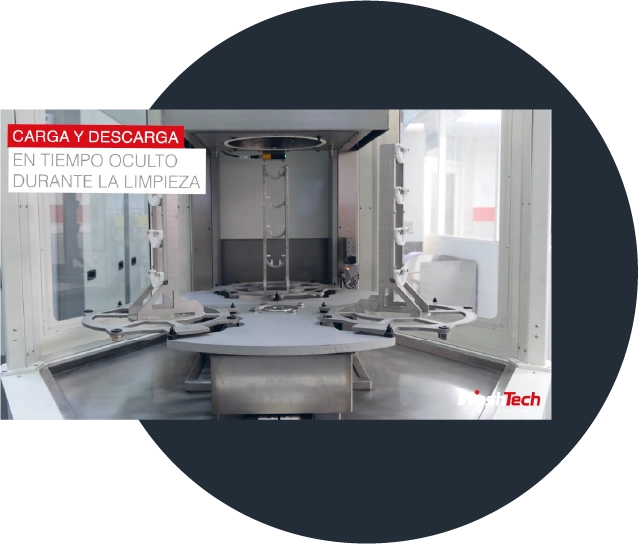

Integration of an indexed rotary table ensuring loading/unloading during the hidden time of the cleaning cycle
Also allows integration of additional post-cleaning processes, such as marking, traceability, quality control, etc.
Horizontal, inclined, vertical or multiple chambers, for long parts or several parts at once
WR version with a dedicated rinsing module, for demanding degreasing before laser welding or heat treatment

Flexibility in Parts Washing for Robotic Cells

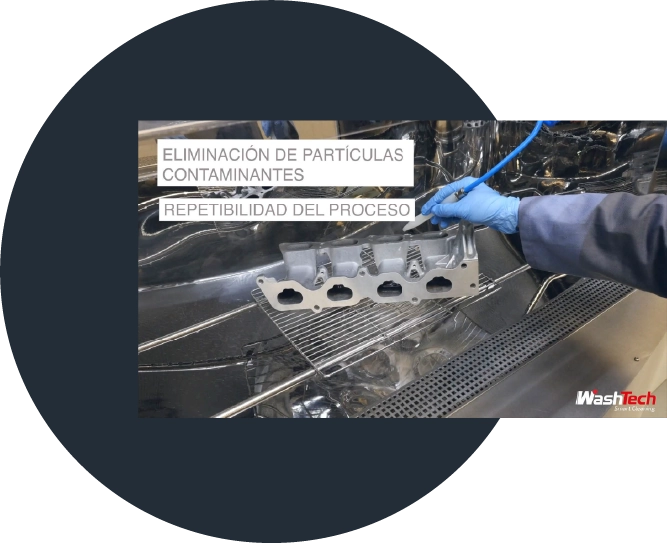

A Solution for Your Cleaning Requirements

We support you through validation tests and laboratory analysis.

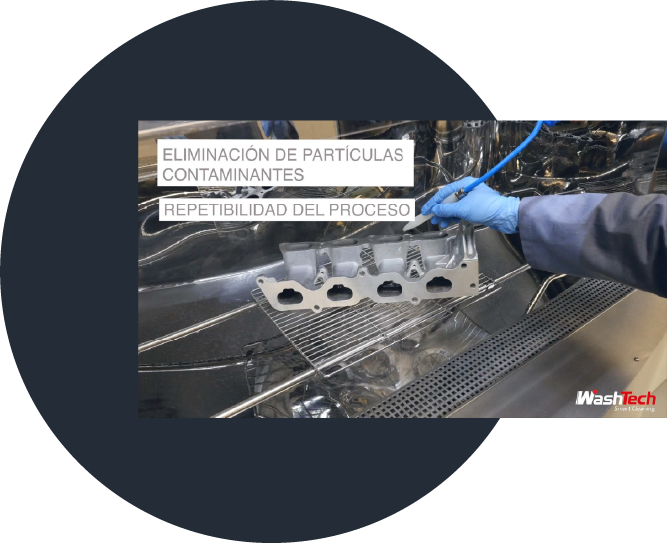

Gravimetry and particle size analysis
VDA19 – ISO 16232 standards
Surface tension measurement: degreasing up to 38 dynes/cm

Example: aluminum steering rack housings after machining: 42 s per part, 1 mg max per part, 0 particles larger than 600 µm and perfect drying, in a 700 mm wide machine.

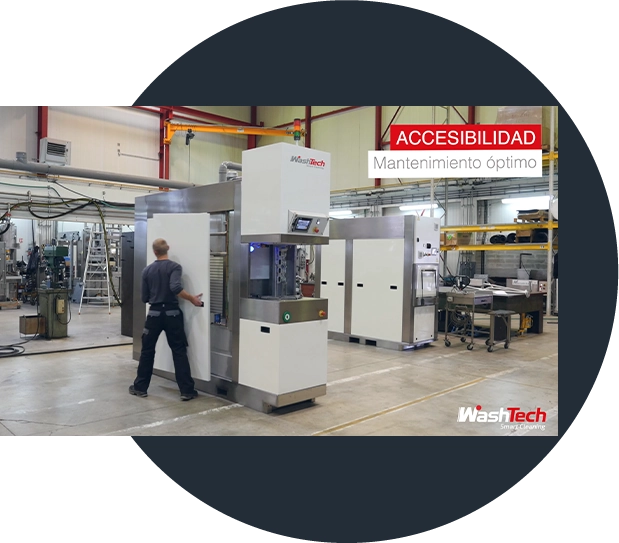

Simplified and Safe Maintenance

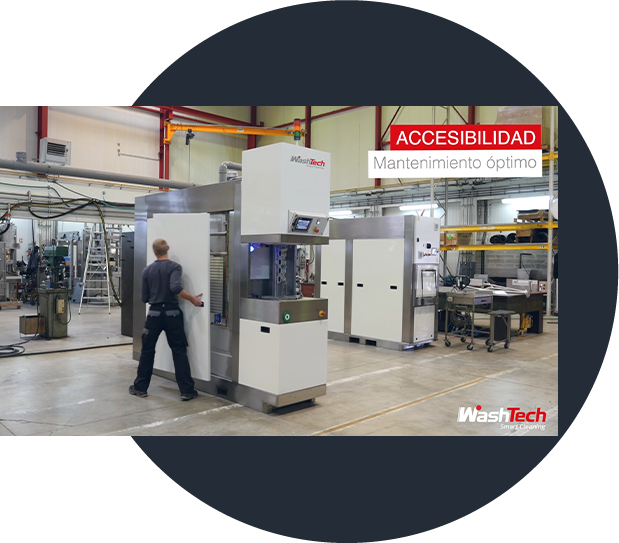

Large removable panels ensure safe and easy access to the filtration system, tank, and other moving parts.

Self-cleaning of the working chamber
Automatic or full/partial drainage
Maintenance monitoring management via HMI
Option to connect the machine to a central detergent supply unit

Washer Easy Integration in Robotic Cells

COMMON APPLICATIONS

Final washing of automotive parts
Drive shafts and camshafts
Steering housings
Turbo components
Manifolds
Cylinder heads
Transmission components
Steering racks

Cylinder heads and crankcases
Common rails
Crankshafts
High-flow cleaning
In-process degreasing
Particle cleaning
Cleaning in a robotic cell

Frequently asked questions

What is a one-piece-flow parts washer?

A machine that washes and dries each part individually, at the pace of the line, instead of accumulating batches in baskets. Work in progress disappears and any deviation is detected immediately.

Can the MecanoFAST be integrated into a robot cell?

Yes. More than half of the MecanoFAST machines installed are loaded by robots. The machine communicates via Profinet with a PN/PN coupler and can be fitted with a 2- to 5-position rotary table for loading and unloading in hidden time.

What cleanliness level can it reach?

Cleanliness is validated to ISO 16232 and VDA 19 or to the customer specification, with degreasing up to 38 dynes/cm surface tension. For example, on steering housings: 1 mg max per part and 0 particles larger than 600 µm, with perfect drying.

MecanoFAST or tunnel washer?

For parts produced one by one on a line, the MecanoFAST takes less than 2 m², uses about half the energy and a quarter of the water of a tunnel, and creates no work in progress. Dedicated tooling cleans critical areas such as blind holes and threads.

Where is it built and who services it in Mexico?

The MecanoFAST is built in Mexico, France or India. Installation, commissioning and service in Mexico are provided by WashTech from Querétaro.

Can I run trials with my own parts?

Yes. We run washing trials with your parts in Mexico or France, with cleanliness analysis if your specification requires it.
